Hama Suport TV FULLMOTION de perete, 5 stele, 229 cm (90 "), negru
TV wall brackets improve your viewing potential and allow you to enjoy watching films and more at a better angle. This bracket can be optimally adapted depending on your position in the room and is ideal for use all around the home, whether that be in the living room or kitchen.
Highlights
Sistem Easy-Fix
Rapid și ușor de poziționat în orice moment: Cu un simplu mâner puteți alinia spontan televizorul după dorință - fără niciun fel de unelte
Cable manager
Cablul managerial asigură ordinea şi mişcarea de descărcare necesară
Rebalancing
În cazul în care suportul TV a fost montat ușor înclinat, poziția televizorului poate fi ajustată ulterior cu câteva grade pe orizontală
Drilling template for marking the drill holes
Datorită șablonului de perforare, desenarea orificiilor este facilă, fără să fie necesară așezarea pe perete a suportului
Vibration dampers
Sistem de atenuare a vibrațiilor pentru o claritate maximă a sunetului
-
Technical Specs

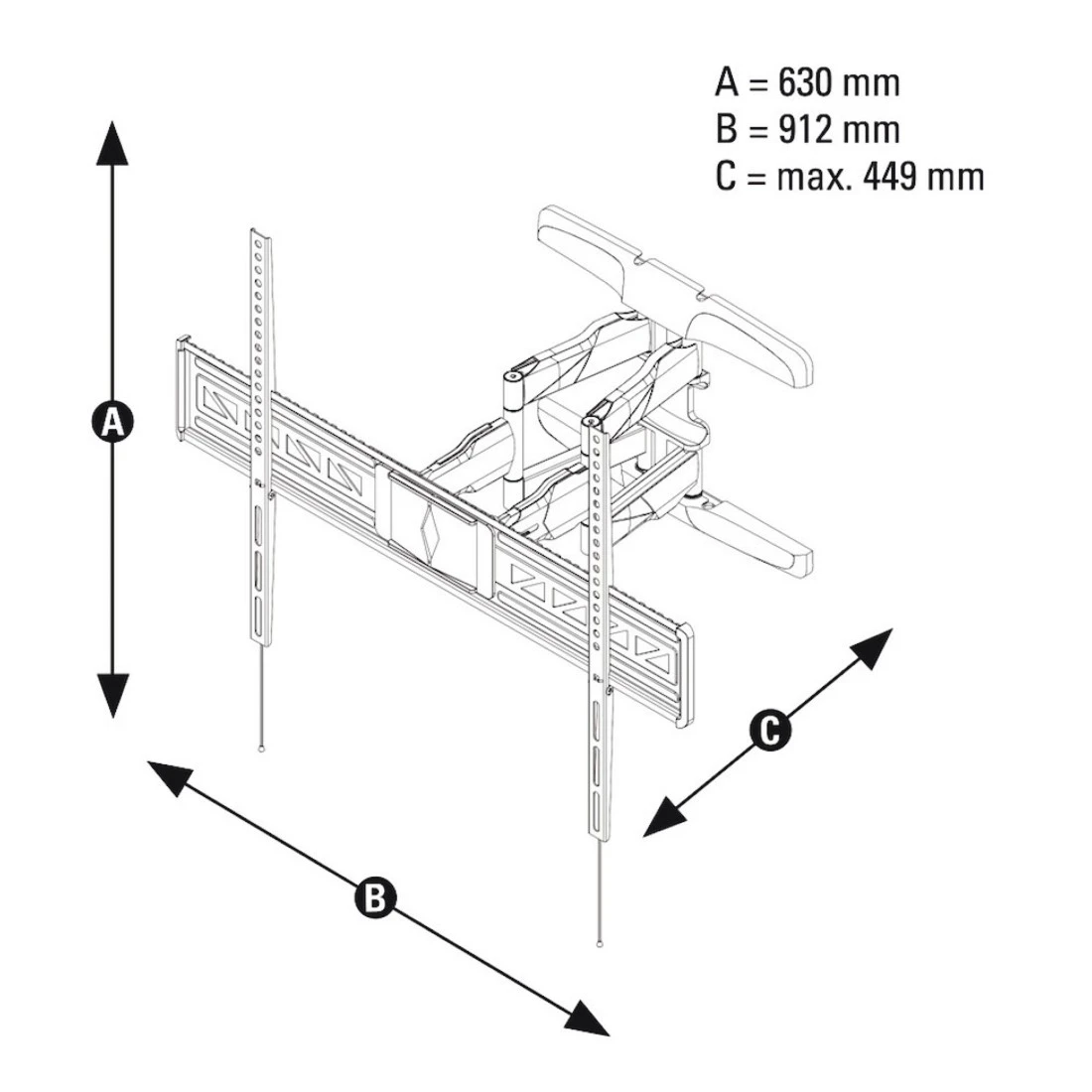

Design (Colour, Pattern, Motif, Series) Colour Black Shade of colour Black Quality Quality 5 Stars Physical Properties Additional Functions Cablemanager, Drilling template, Spirit level Hole Size Attachment Up to M8 Material Steel Plate Maximum Load Capacity 75 kg Maximum swivel range 120 ° Model TV number of joints 3 Projection maximum 44.9 cm Projection minimum 5.5 cm Rotation 6 ° Tilt +/- 2 / 10 ° Size & Weight External Dimension (Height) 63 cm External Dimension (Width) 91.2 cm Mounting Plate (Length) 47.7 cm Mounting Plate (Width) 35.9 cm Screen Dimensions 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 191 cm (75"), 198 cm (78"), 200 cm (79"), 203 cm (80"), 213 cm (84"), 216 cm (85"), 228,6 cm (90") VESA (from-to) 300x100 - 800x600 VESA Standard 300 x 100, 300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 500 x 400, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600, 800 x 200, 800 x 400, 800 x 500, 800 x 600 Field of Application Recommended Maximum Screen Size 228,6 cm (90") Recommended Minimum Screen Size 119 cm (47") Recommended Screen Size 119 - 229 cm (47" - 90") Suitable for TV Version Swivelling/Tilting -
More product information
- For the installation of flat screen TVs with a screen size from 119 to 229 cm (47" to 90")
- Exceptionally convenient and space-saving for optimal positioning of the flat screen in every room
- Supports all VESA standards up to 800 x 600
- Up to +2°/-10° continuous tilt
- Swivel range on 3 hinges: up to 120°
- 10-year warranty
-
What's in the Box
- 1 TV wall bracket
- 1 screw set incl. Fischer plugs
- 1 spirit level
- 1 drilling template
- 1 pencil
- Cable tie
- 1 installation guide
-
Note for Consumers
In addition to the varied installation accessories supplied, we also recommend the following tools for the installation process: drill, pencil, screwdriver, power screwdriver, measuring tape, open-end spanner, spirit level.
The dowels and screws supplied with this TV wall bracket are only suitable for concrete and solid brick walls. Please check your wall before commencing installation. If the wall is made of any other material, please source suitable dowels and screws from a specialist retailer.
To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move. -
Manufacturer information
Hama GmbH & Co KG, 86652, Monheim, https://hama.com
-
Warranty
Hama GmbH & Co KG provides the following manufacturer’s warranty on the workmanship and materials used for the product 00116225 Suport TV FULLMOTION de perete, 5 stele, 229 cm (90 "), negru: Garantat 10 ani
This warranty begins on the date of purchase of this Hama product and is valid throughout the EU.
If material or manufacturing faults that are considered to constitute a warranty claim occur during the warranty period, Hama GmbH & Co KG will resolve the fault free of charge by repairing the goods or replacing them a product that Hama GmbH & Co KG deems to be equivalent.
The warranty we provide is in addition to the statutory rights to a warranty free of charge, for which any claim must be directed to the seller of your product.
Likewise, any statutory rights you have to a warranty free of charge from us remain unaffected by this warranty promise.
In the event of a warranty claim, you must send the Hama product along with proof of purchase in original form with postage and freight costs paid to the following address:
Hama GmbH & Co KG
Dresdner Str. 9
86653 Monheim
Germany
We would ask you to appreciate that Hama GmbH & Co KG may reject the
warranty claim if the proof of purchase is not provided, because this proof is used to calculate the warranty period.
The warranty is valid only for non-commercial users of our product.
In the case of defects caused by force or improper use, as well as in the case of repairs or actions by the purchasing party or third parties without the prior written consent of Hama GmbH & Co KG, the warranty becomes null and void.
Damages that are not covered by this warranty may be fixed against the cost of the repairs, either by the dealer that sold you the product or by Hama GmbH & Co KG.
Hama GmbH & Co KG, Dresdner Str. 9, 86653 Monheim, 2022
FAQs
-
Do I need a separate spirit level to install this?
The spirit level included is only intended as a rough guide. We recommend checking the correct alignment using a calibrated spirit level from a specialist store.
-
How can I correct the position of the TV after installation?
To compensate any slightly skewed TV, loosen the screw connections on the longitudinal holes on the side nearest the wall. If you have enough play on the wall-side mounting element, move it into a horizontal position with the aid of an external spirit level. Then re-tighten the screw connections.
-
Can I also attach my curved TV to the wall bracket?
Yes, the spacers included allow even TVs with a curved back to be hung effortlessly
-
How do I change the position of the flat screen TV using the rotation setting?
Loosen the corresponding fastening screws and set the desired rotation. Then tighten the screw connection only so far that you can still adjust the TV by hand - i.e. do not tighten it completely. After releasing, the flat screen TV should then remain in the position you selected. This ensures that you can make minor changes to the position of the TV set at any time without using tools.
